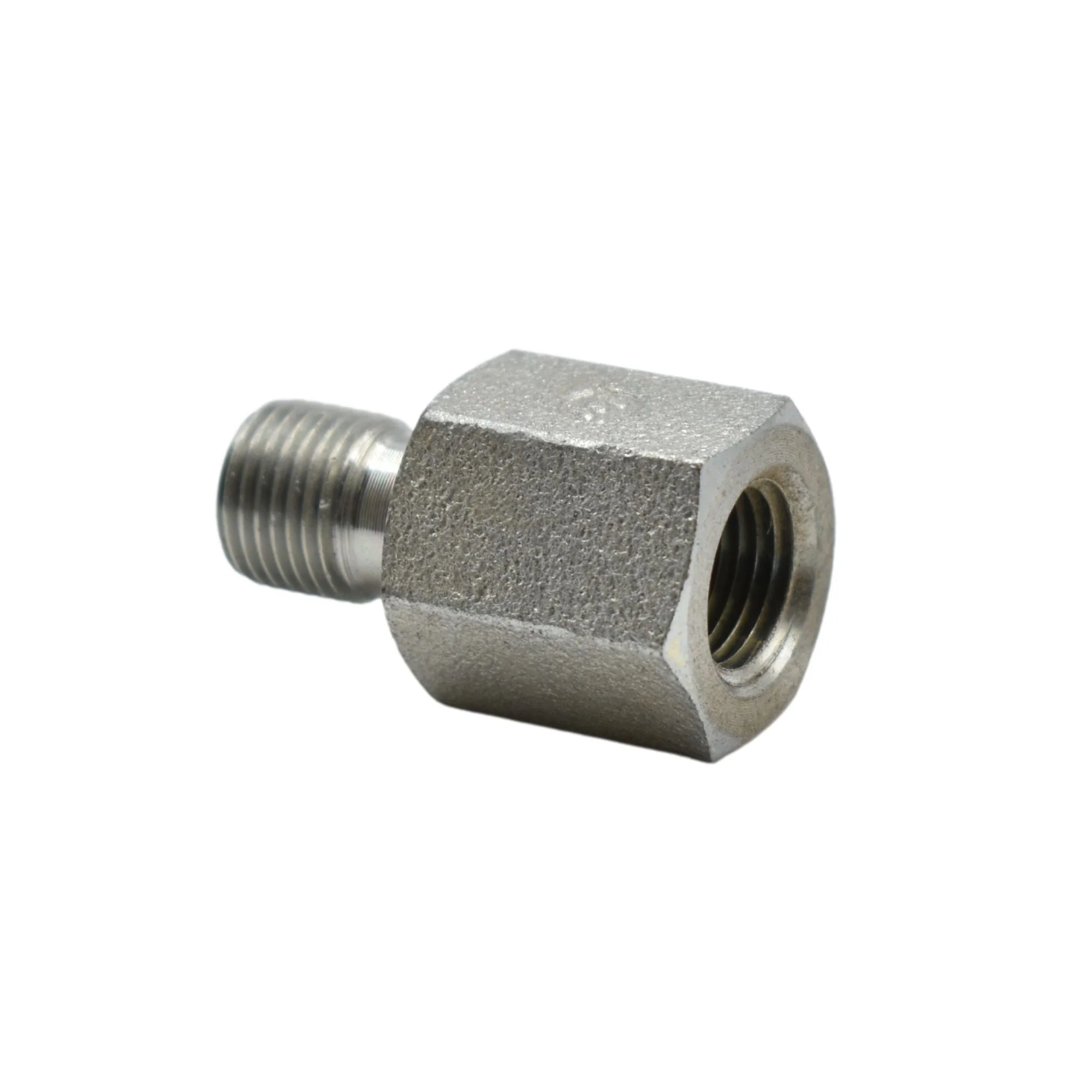

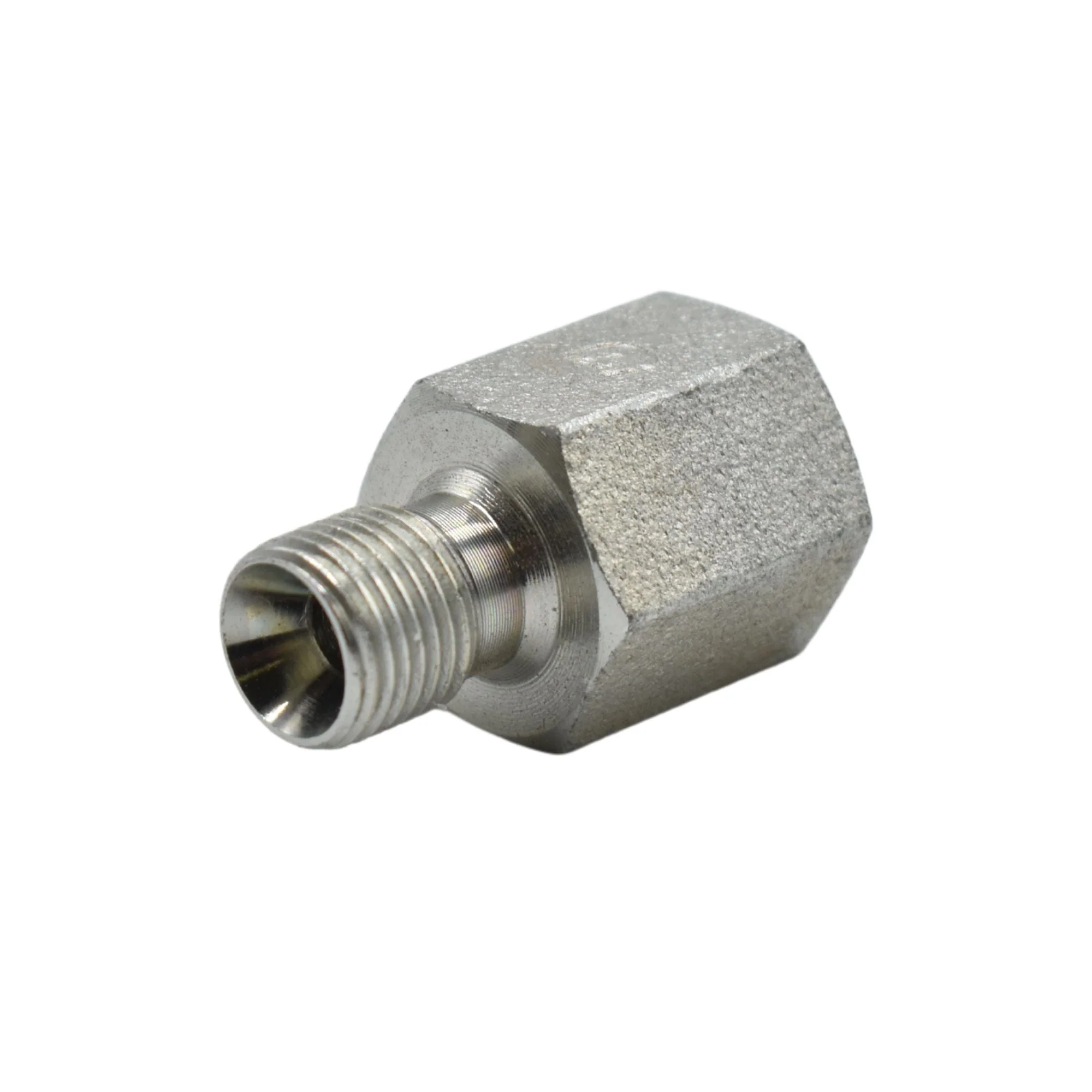

Hydraulics | 02FP-02MBSPP Straight Adapter | 7042-02-02
| THREAD TYPE B1 | FEMALE NPT |
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL MM | 8.5 |
| THREAD SPECIFICATION B1 | ANSI B1.20.1 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/8-28 |
| THREAD DRILL B2 MM | 4.0 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX MM | 16.0 |
| OVERALL LENGTH L MM | 28.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.038 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.437 |
| THREAD TYPE B1 | FEMALE NPT |
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL MM | 8.5 |
| THREAD SPECIFICATION B1 | ANSI B1.20.1 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/8-28 |
| THREAD DRILL B2 MM | 4.0 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX MM | 16.0 |
| OVERALL LENGTH L MM | 28.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.038 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.437 |
$7.61
Hydraulics | 02FP-02MBSPP Straight Adapter | 7042-02-02—
$7.61
Description
| THREAD TYPE B1 | FEMALE NPT |
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL MM | 8.5 |
| THREAD SPECIFICATION B1 | ANSI B1.20.1 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/8-28 |
| THREAD DRILL B2 MM | 4.0 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX MM | 16.0 |
| OVERALL LENGTH L MM | 28.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.038 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.437 |
