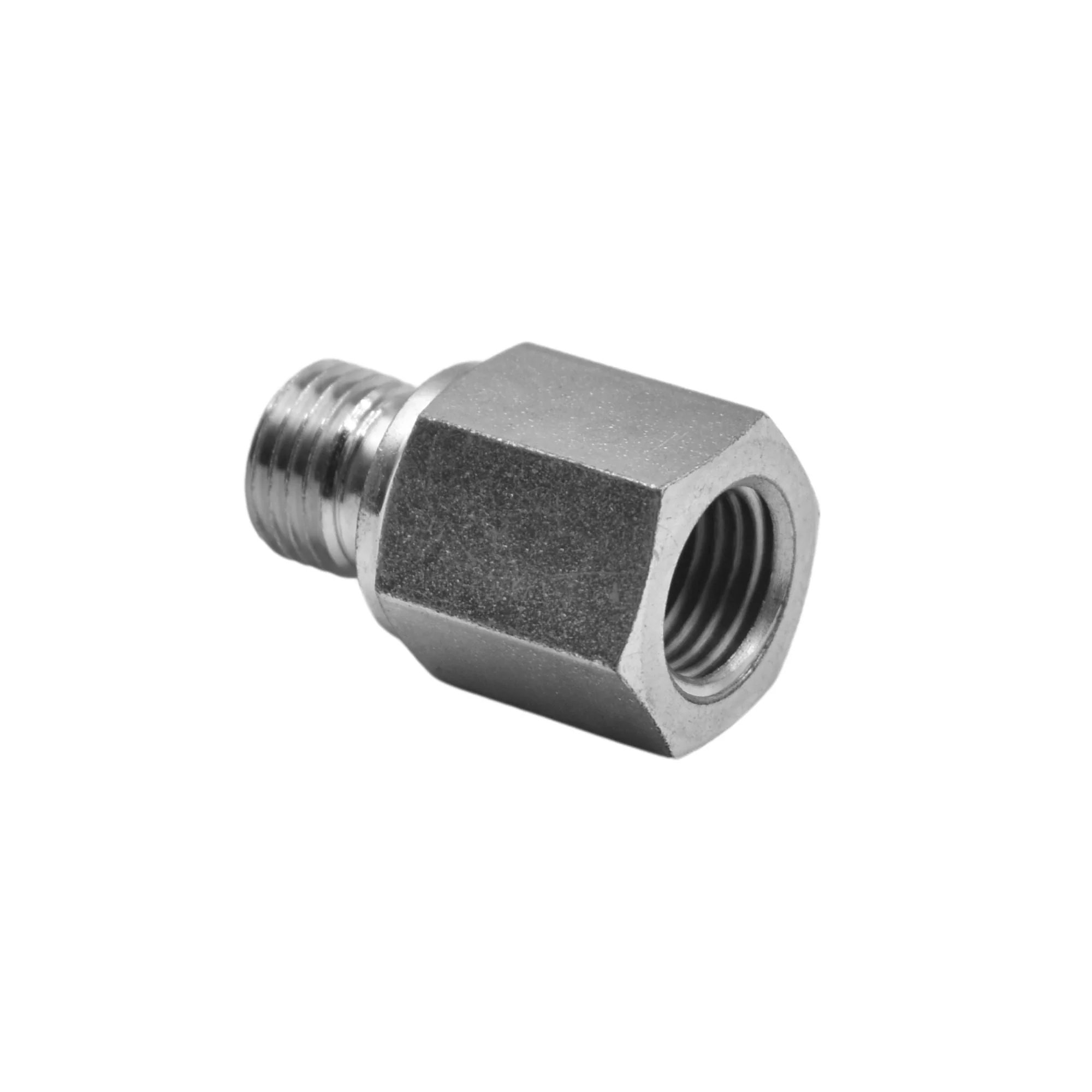

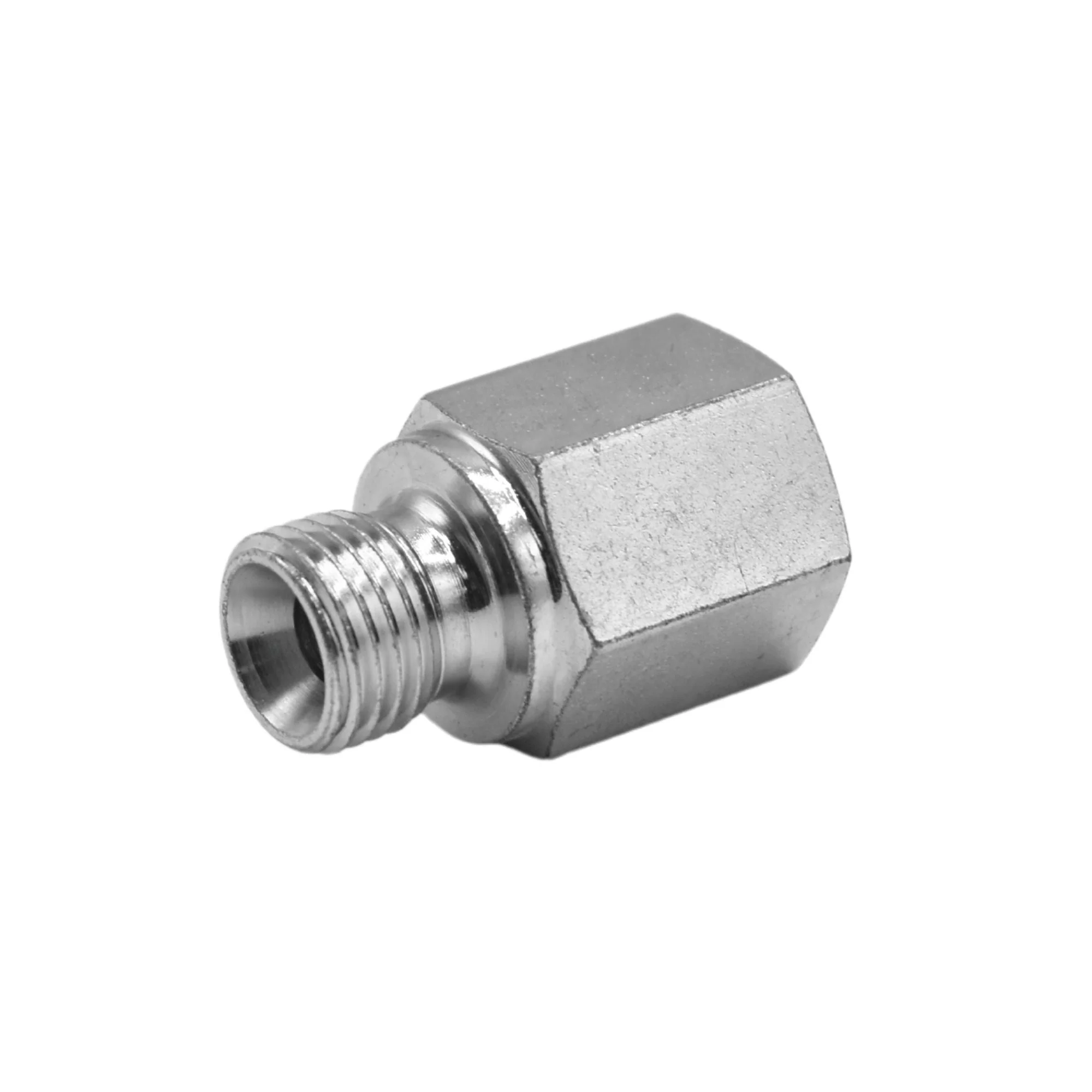

Hydraulics | 04FP-04MBSPP Straight Adapter | 7042-04-04
| THREAD TYPE B1 | FEMALE NPT |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL MM | 7.1 |
| THREAD SPECIFICATION B1 | ANSI B1.20.1 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 MM | 6.0 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX MM | 19.0 |
| OVERALL LENGTH L MM | 32.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.081 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.716 |
| THREAD TYPE B1 | FEMALE NPT |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL MM | 7.1 |
| THREAD SPECIFICATION B1 | ANSI B1.20.1 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 MM | 6.0 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX MM | 19.0 |
| OVERALL LENGTH L MM | 32.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.081 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.716 |
$3.53
Original: $10.10
-65%Hydraulics | 04FP-04MBSPP Straight Adapter | 7042-04-04—
$10.10
$3.53Description
| THREAD TYPE B1 | FEMALE NPT |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL MM | 7.1 |
| THREAD SPECIFICATION B1 | ANSI B1.20.1 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 MM | 6.0 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX MM | 19.0 |
| OVERALL LENGTH L MM | 32.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.081 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.716 |
