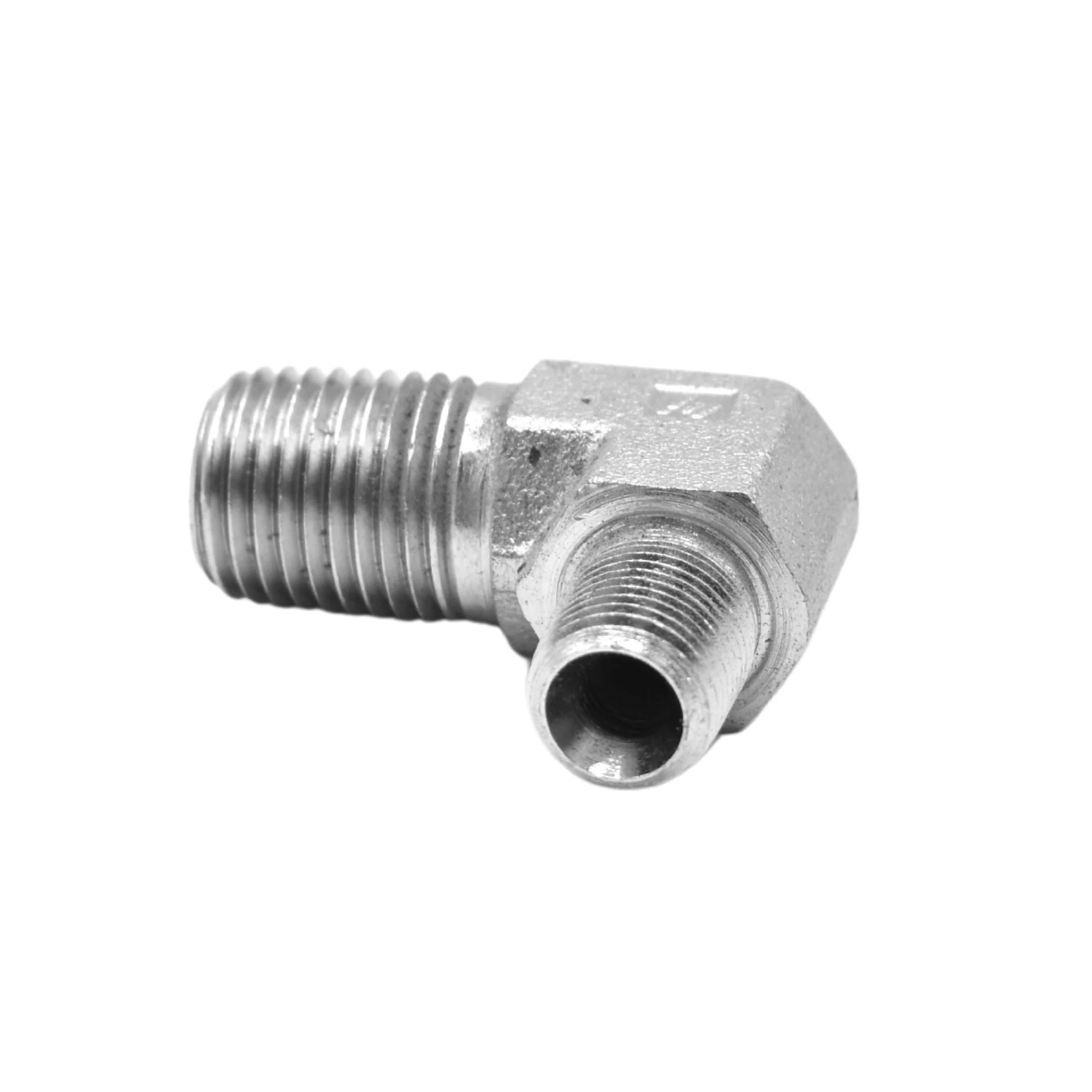

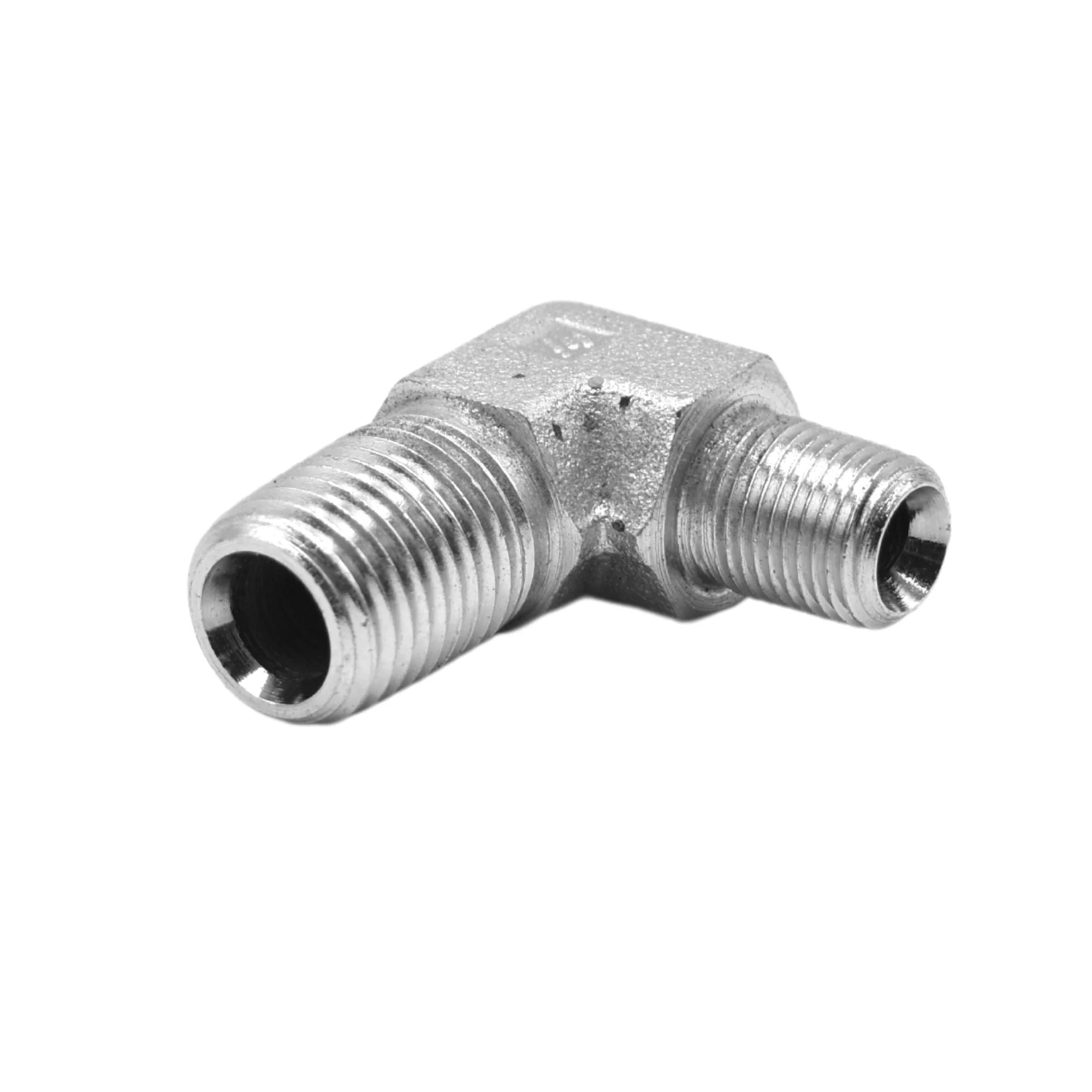

Hydraulics | 04MP-02MP 90deg Elb Forg Adapter | 5500-04-02-FG
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL IN | 0.188 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.900 |
| CENTERLINE LENGTH M IN | 1.090 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.0937 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.91 |
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL IN | 0.188 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.900 |
| CENTERLINE LENGTH M IN | 1.090 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.0937 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.91 |
$10.30
Hydraulics | 04MP-02MP 90deg Elb Forg Adapter | 5500-04-02-FG—
$10.30
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL IN | 0.188 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.900 |
| CENTERLINE LENGTH M IN | 1.090 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.0937 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.91 |
