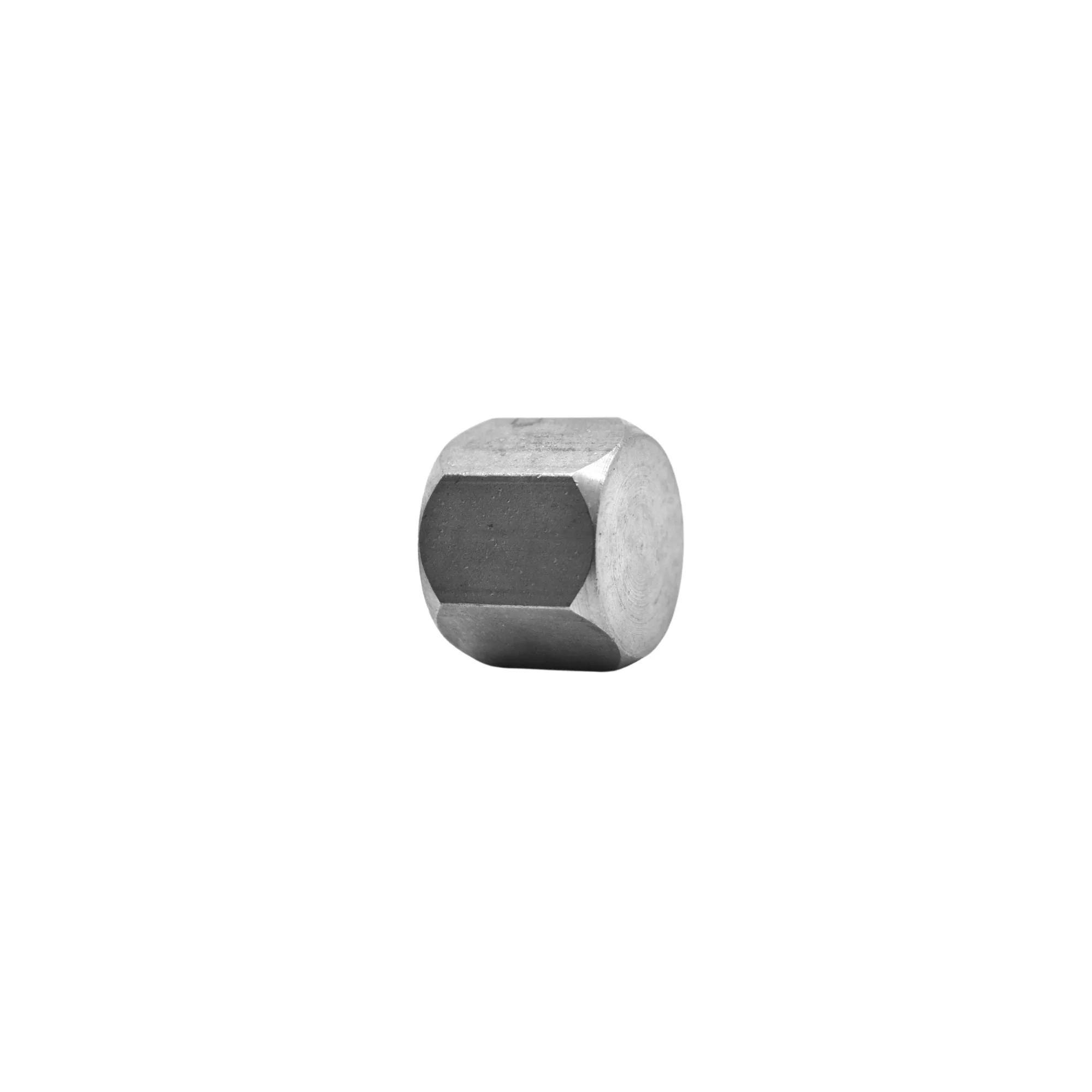

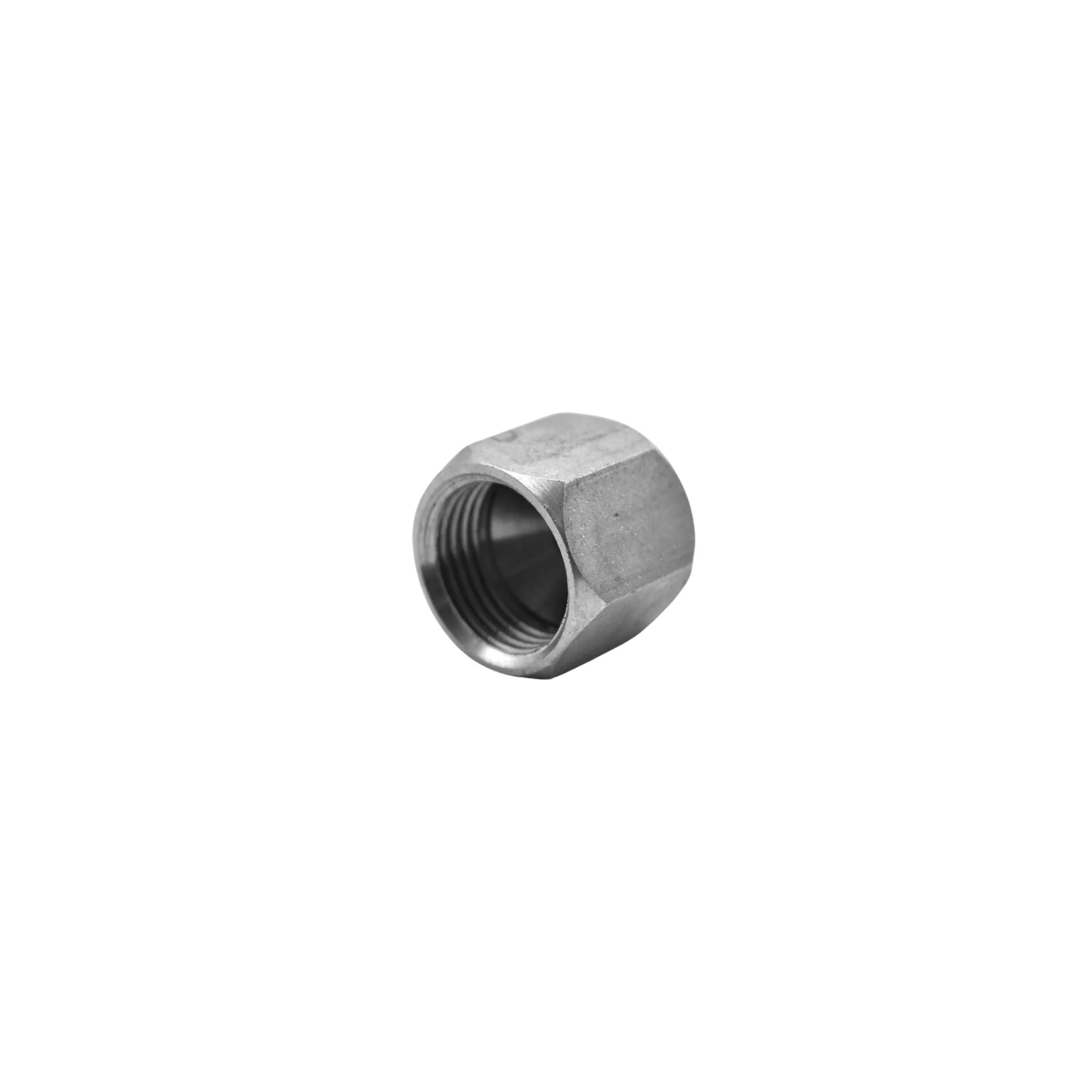

Hydraulics | 08 JIC Cap Nut SS | 0304-C-08-SS
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | TUBE OD 1/2 |
| THREAD B1 DRILL IN | 3/4-16 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 0.750 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.0812 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.574 |
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | TUBE OD 1/2 |
| THREAD B1 DRILL IN | 3/4-16 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 0.750 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.0812 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.574 |
$19.30
Hydraulics | 08 JIC Cap Nut SS | 0304-C-08-SS—
$19.30
Description
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | TUBE OD 1/2 |
| THREAD B1 DRILL IN | 3/4-16 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 0.750 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.0812 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.574 |
