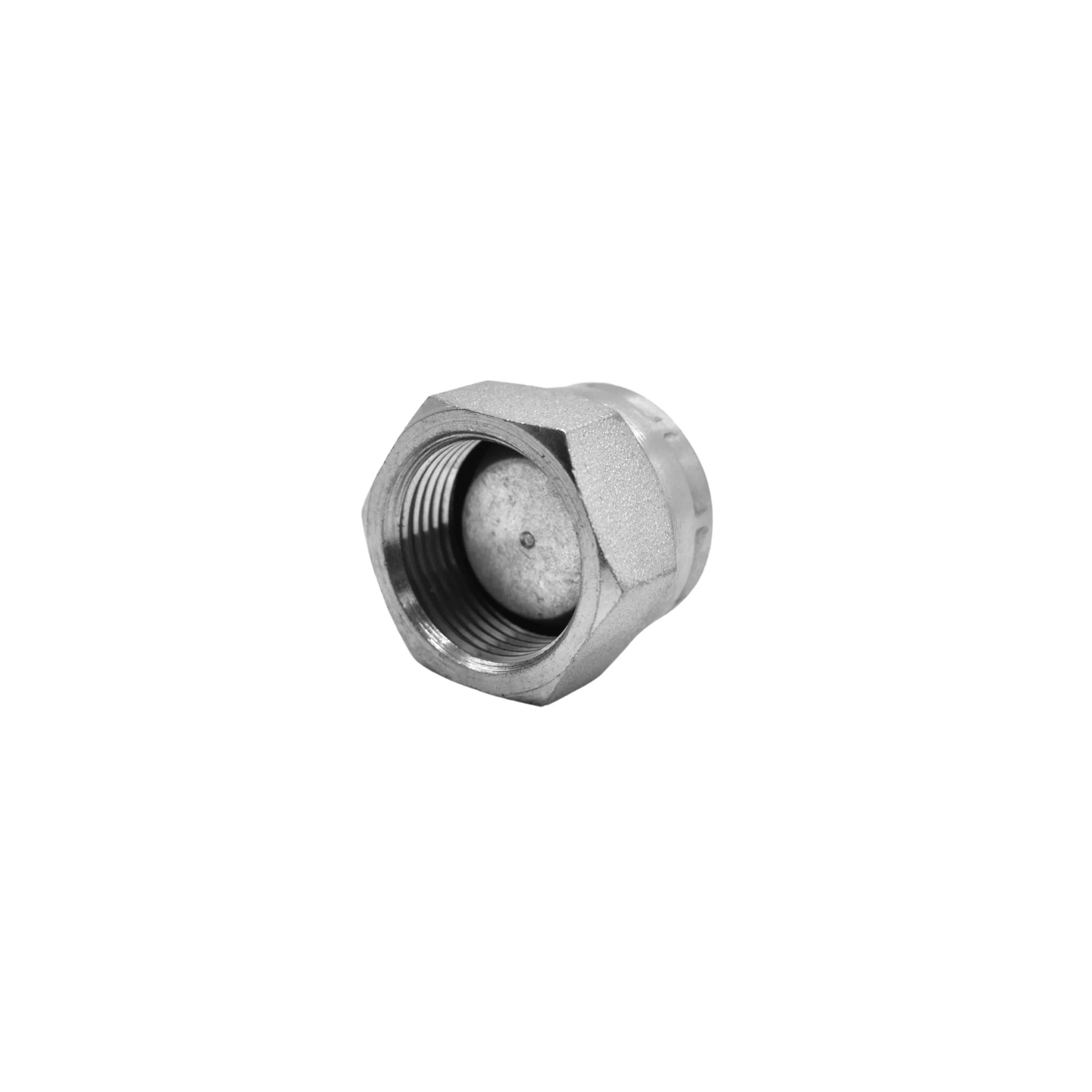

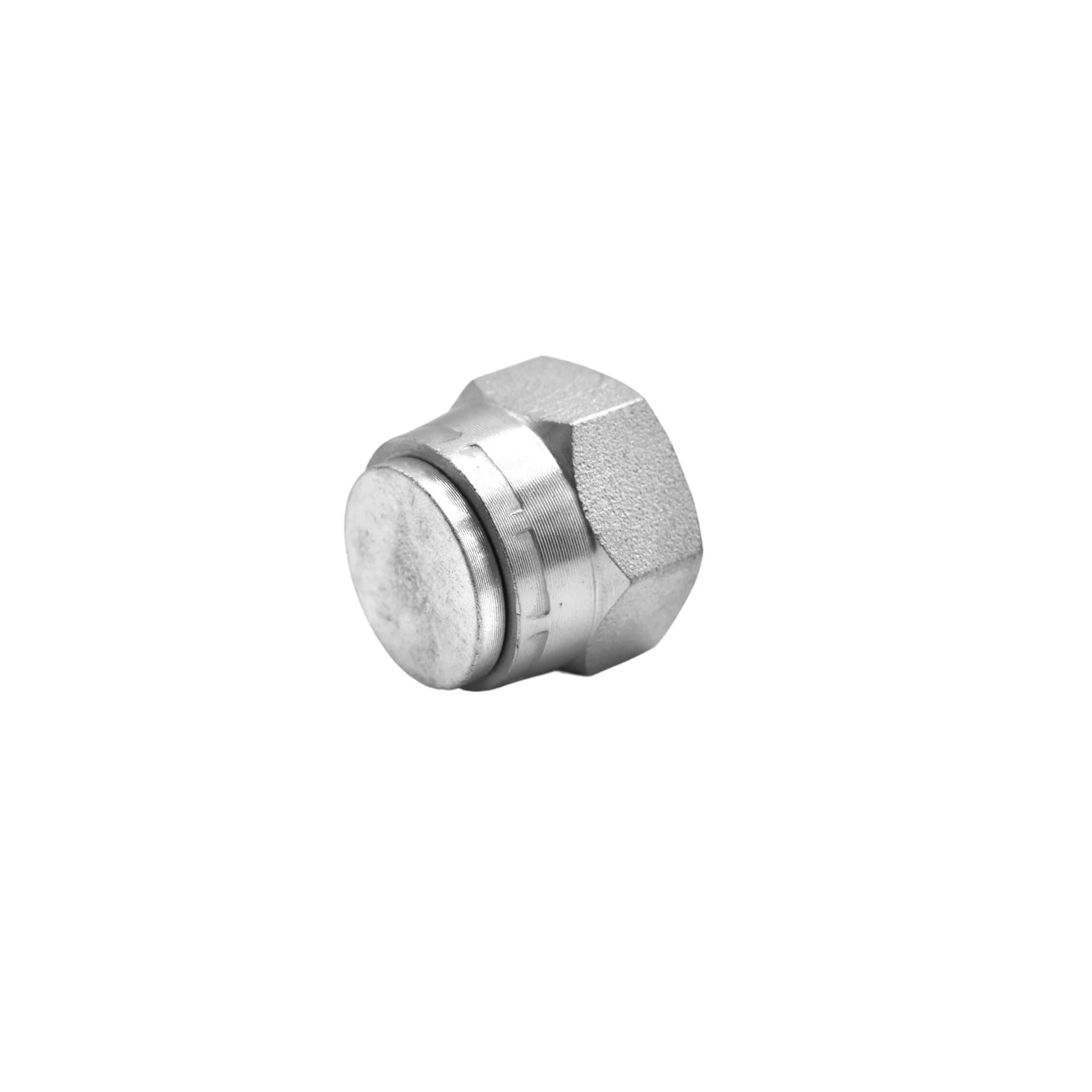

Hydraulics | 12FBSPP Cap | 9644-C-12
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | ISO 1179, ISO 8434-6, BS 5200 |
| BODY HEX (MM) | 32.0 |
| OVERALL LENGTH L1 (MM) | 28.05 |
| OVERALL LENGTH L2 (MM) | 19.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.220 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.753 |
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | ISO 1179, ISO 8434-6, BS 5200 |
| BODY HEX (MM) | 32.0 |
| OVERALL LENGTH L1 (MM) | 28.05 |
| OVERALL LENGTH L2 (MM) | 19.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.220 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.753 |
$5.80
Original: $16.58
-65%Hydraulics | 12FBSPP Cap | 9644-C-12—
$16.58
$5.80Description
| THREAD TYPE B1 | FEMALE BSPP SWIVEL |
| THREAD SIZE B1 | 3/4-14 |
| THREAD SPECIFICATION B1 | ISO 1179, ISO 8434-6, BS 5200 |
| BODY HEX (MM) | 32.0 |
| OVERALL LENGTH L1 (MM) | 28.05 |
| OVERALL LENGTH L2 (MM) | 19.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.220 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 2,900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.753 |
