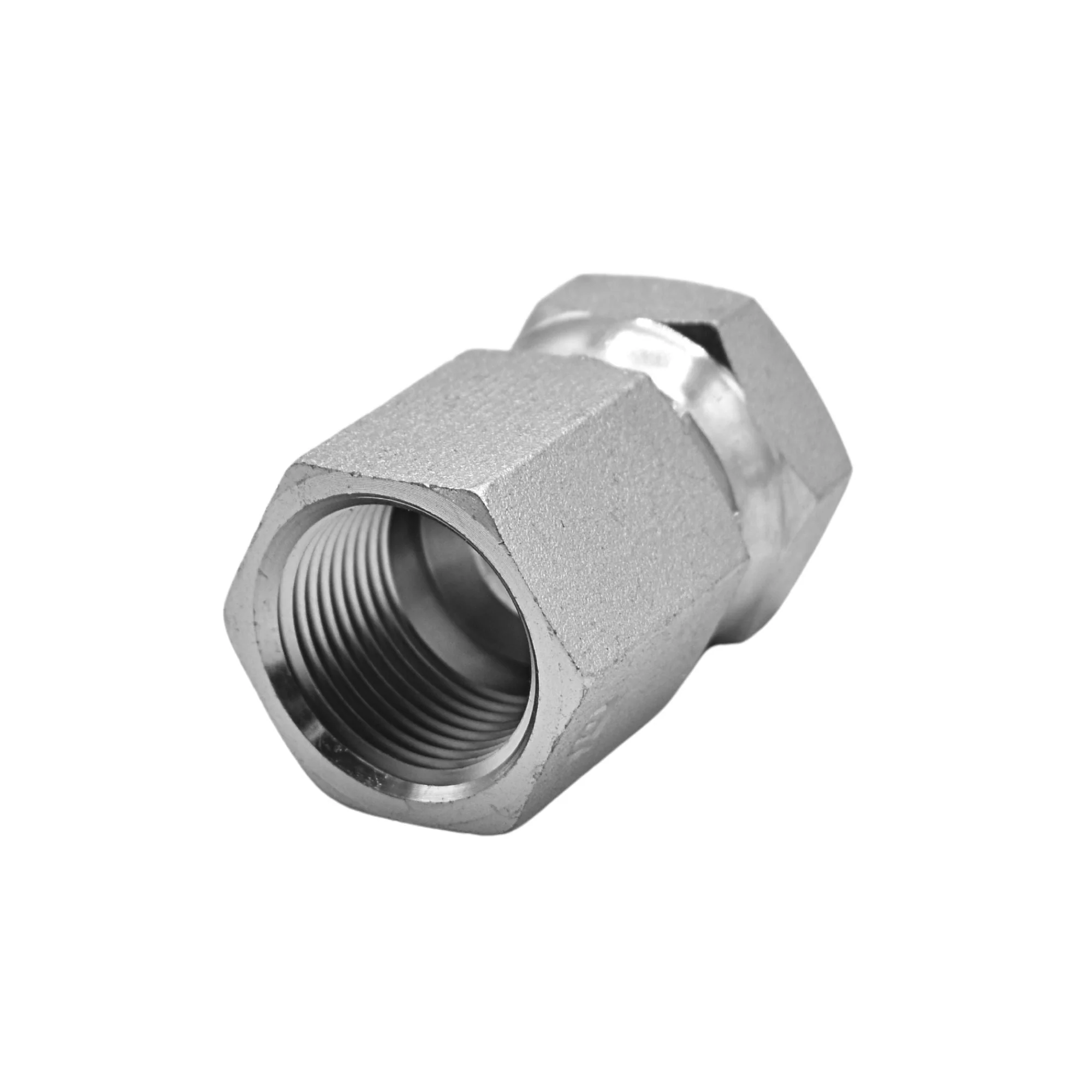

Hydraulics | 12FP-12FPS Straight Adapter | 1405-12-12
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.610 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.250 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 1.970 |
| OVERALL LENGTH L2 IN | 1.620 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.36 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.078 |
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.610 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.250 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 1.970 |
| OVERALL LENGTH L2 IN | 1.620 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.36 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.078 |
$10.93
Hydraulics | 12FP-12FPS Straight Adapter | 1405-12-12—
$10.93
Description
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.610 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.250 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 1.970 |
| OVERALL LENGTH L2 IN | 1.620 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.36 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.078 |
