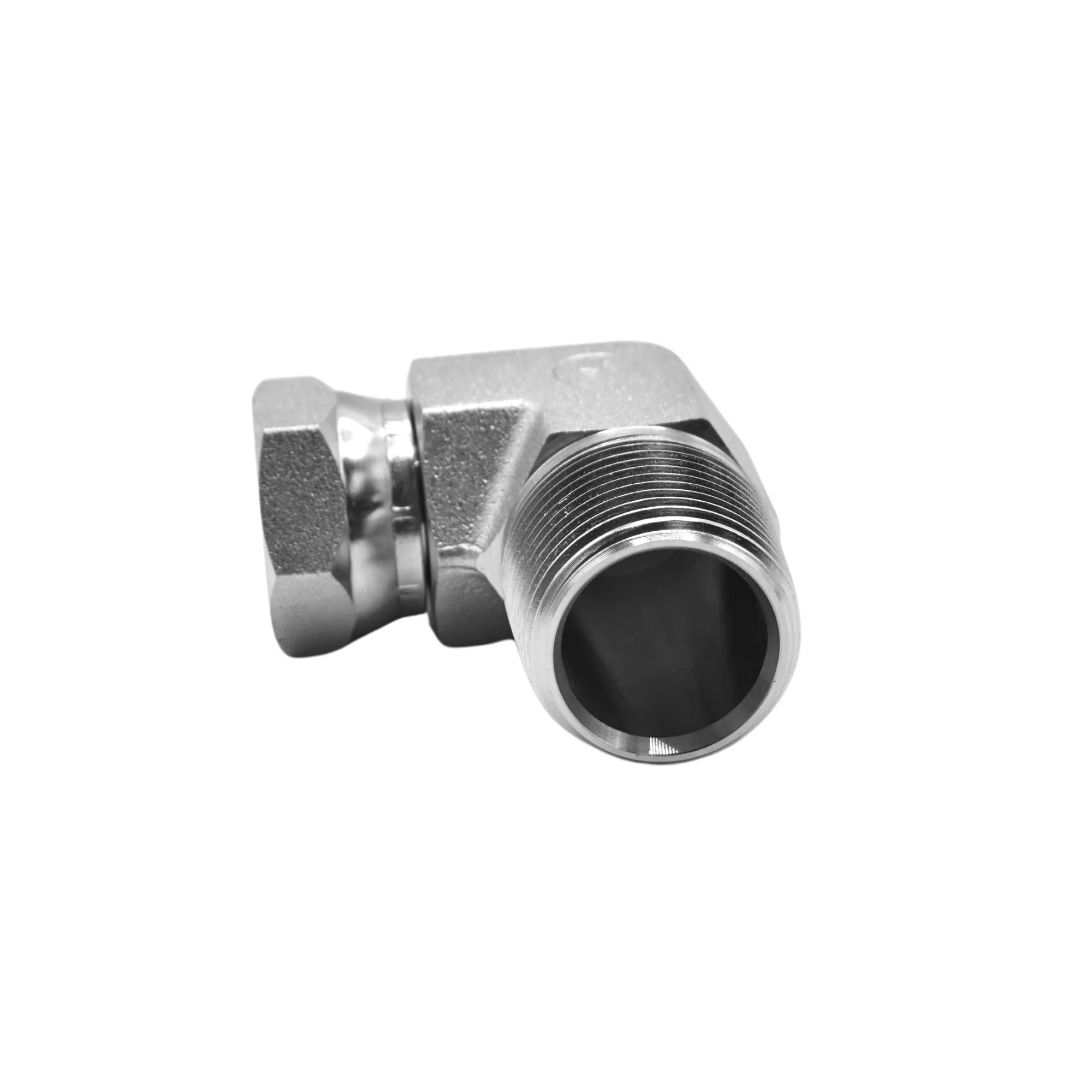

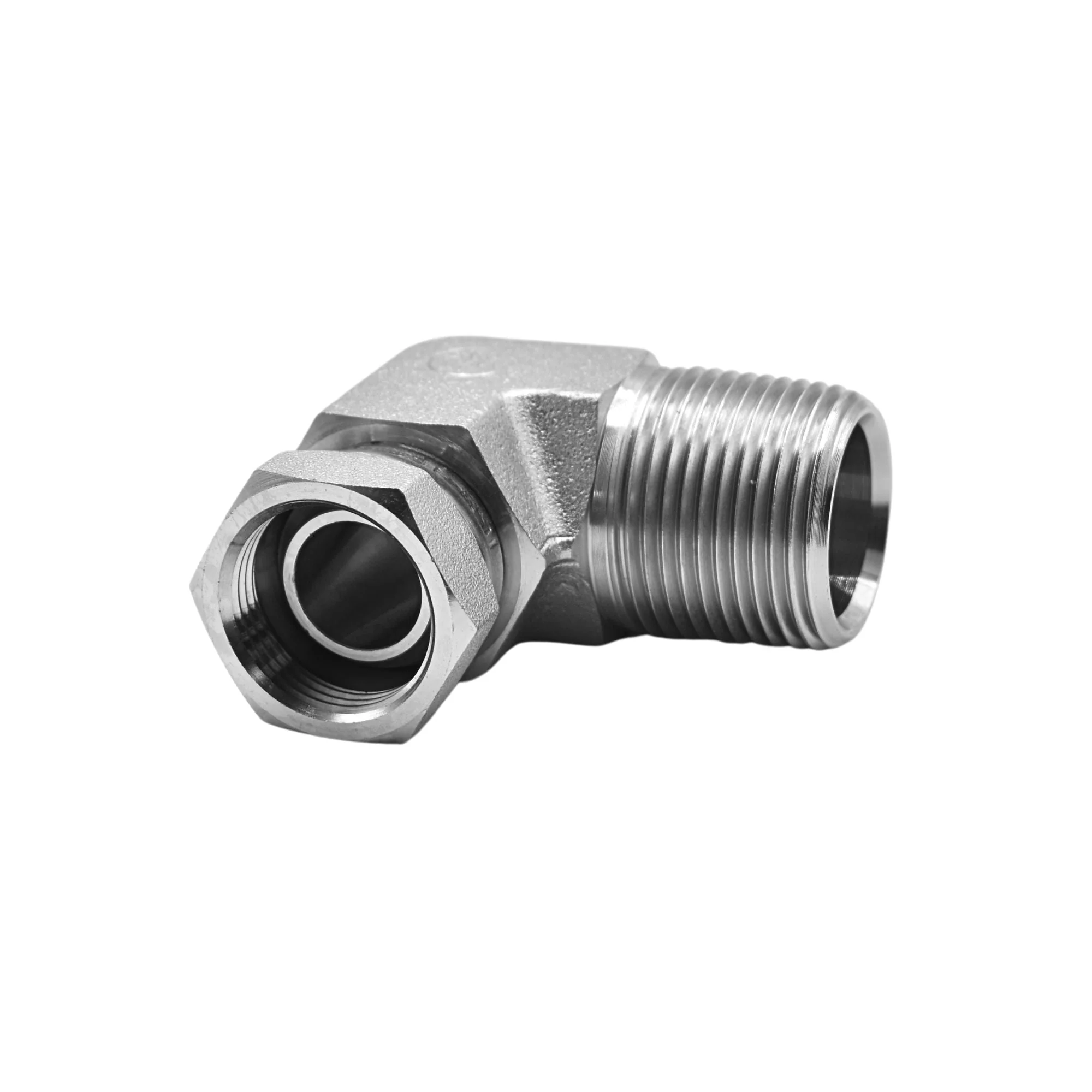

Hydraulics | 16MP-12FPS 90* Elb Forg Adapter | 1501-16-12-FG
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.610 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 1.970 |
| CENTERLINE LENGTH M IN | 1.750 |
| CENTERLINE LENGTH M2 IN | 1.410 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.7687 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 7.804 |
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.610 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 1.970 |
| CENTERLINE LENGTH M IN | 1.750 |
| CENTERLINE LENGTH M2 IN | 1.410 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.7687 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 7.804 |
$17.37
Hydraulics | 16MP-12FPS 90* Elb Forg Adapter | 1501-16-12-FG—
$17.37
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.610 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 1.970 |
| CENTERLINE LENGTH M IN | 1.750 |
| CENTERLINE LENGTH M2 IN | 1.410 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.7687 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 7.804 |
