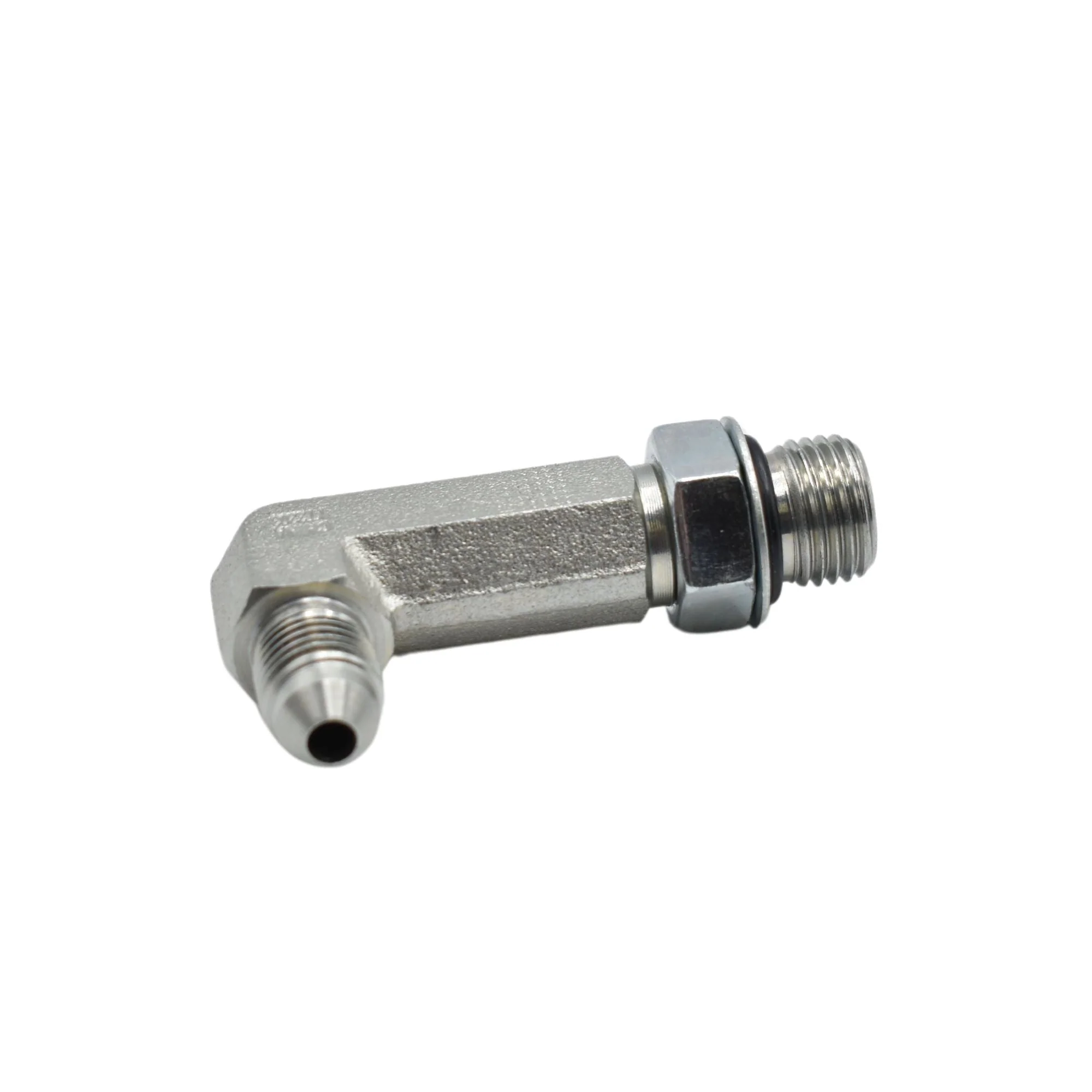

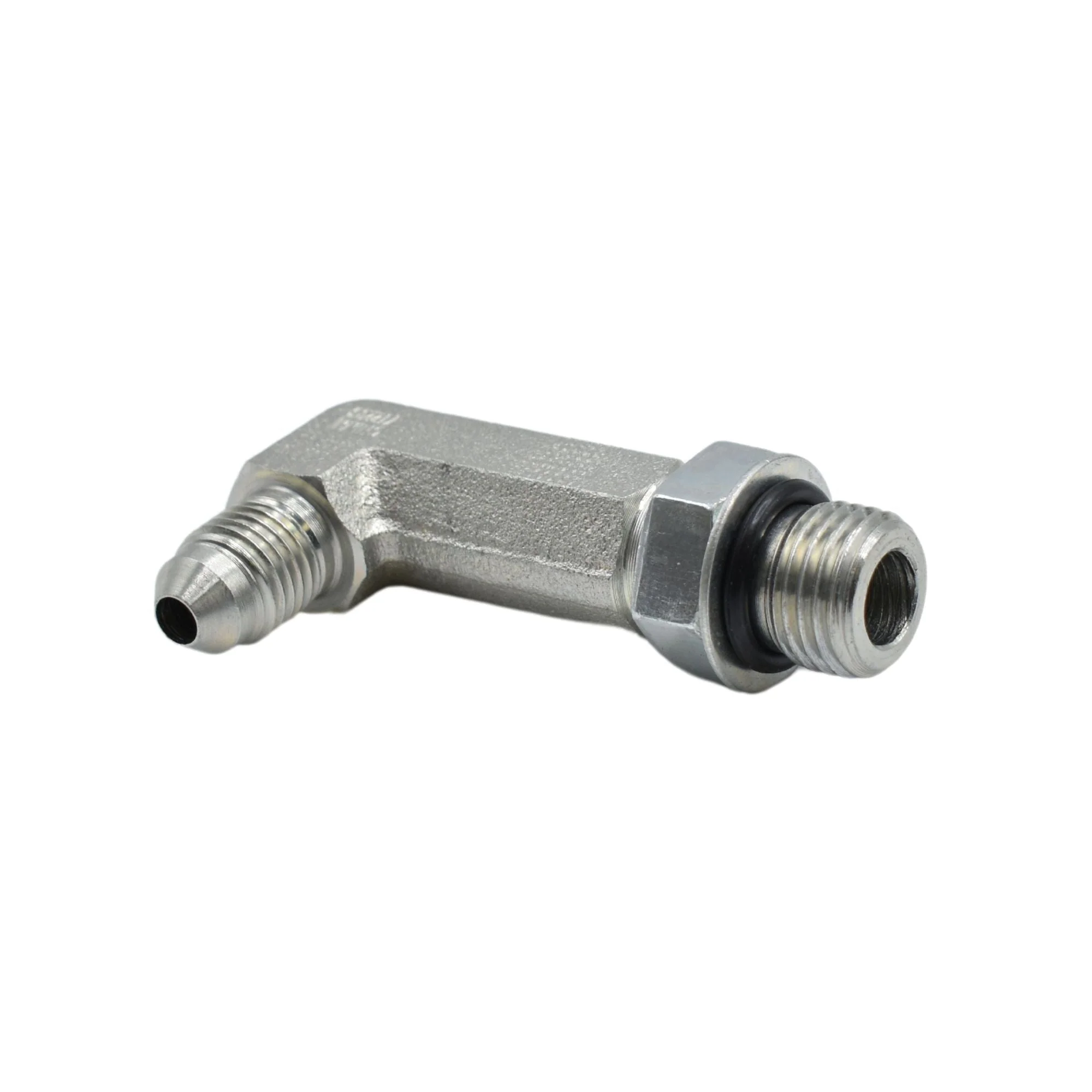

Hydraulics | 04MJ-06MAORB 90deg Elb X-Lg Forg Adapter | 6801-LL-04-06-NWO-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.688 |
| OVERALL LENGTH L IN | 2.080 |
| CENTERLINE LENGTH M IN | 1.050 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.1625 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.688 |
| OVERALL LENGTH L IN | 2.080 |
| CENTERLINE LENGTH M IN | 1.050 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.1625 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$6.14
Hydraulics | 04MJ-06MAORB 90deg Elb X-Lg Forg Adapter | 6801-LL-04-06-NWO-FG—
$6.14
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.688 |
| OVERALL LENGTH L IN | 2.080 |
| CENTERLINE LENGTH M IN | 1.050 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.1625 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
